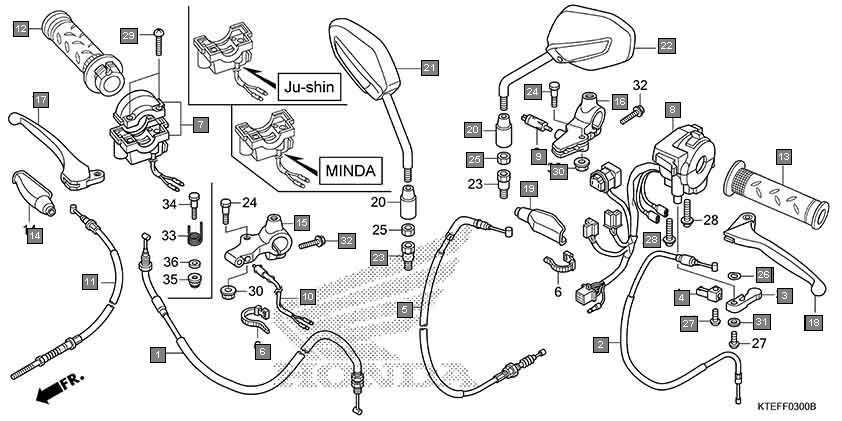

Motorcycles CB Shine CBF125H Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KTE651 CABLE COMP., THROTTLE 1
2 17950KTE650 CABLE COMP., CHOKE 1
3 17961KTE911 LEVER, CHOKE 1
4 17962KTE910 STOPPER, CABLE 1
5 22870KTE910 CABLE COMP., CLUTCH 1
6 32161KSP920 BAND B1, WIRE 2
7 35150KTE601 SWITCH ASSY., STARTER 1
8 35330KEJ900 SWITCH COMP., FR. LEVER 1
9 35340KTE601 SWITCH ASSY., FR. STOP 1
10 45450KTE910 CABLE COMP., FR. BRAKE 1
11 53140KSPA70 GRIP COMP., THROTTLE 1
12 53166KSPA70 GRIP, L. HANDLE 1
13 53171KCC900 COVER, R. HANDLE LEVER 1
14 53171KTEA00 BRACKET, R. HANDLE LEVER 1
15 53172KTE930 BRACKET, L. HANDLE LEVER 1
16 53175KTEA00 LEVER COMP., R. HANDLE 1
17 53178KTEA00 LEVER COMP., L. HANDLE 1
18 53179KTC900 COVER, L. HANDLE LEVER 1
19 88114198D10 CAP, LOCK NUT 1
20 88210K38901ZC MIRROR COMP., R. *NH1* BLACK 1
21 88220K38901ZC MIRROR COMP., L. *NH1* BLACK 1
22 90103KTE920 BOLT, ADAPTER, 10MM 2
23 90114428870 BOLT, HANDLE LEVER PIVOT 1
24 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
25 90442147000 WASHER, WAVE 2
26 93500050100A SCREW, PAN, 5X10 2
27 93500050200G SCREW, PAN, 5X20 2
28 93500050220G SCREW, PAN, 5X22 2
29 9405006000 NUT, FLANGE, 6MM 2
30 9410305000 WASHER, PLAIN, 5MM 1
31 960010602507 BOLT, FLANGE, 6X25 1
32 90114428870 BOLT, HANDLE LEVER PIVOT 2
33 35200KTED01 SWITCH ASSY., WINKER(JU-SHIN) 1
34 35200KTED02 SWITCH ASSY., WINKER(MINDA) 1
35 90442KTED00 WASHER, WAVE 1
