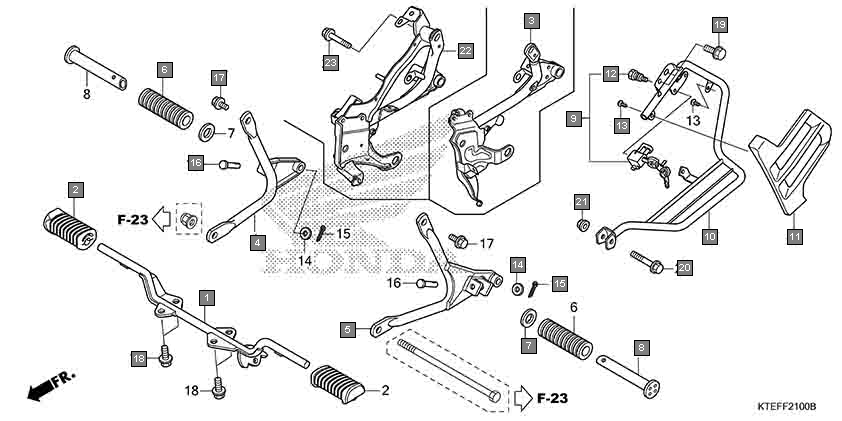

Motorcycles CB Shine CBF125H Frame Step
Ref.No. Part No. Description Oty
1 50701KTE910 BRACKET COMP., R. PILLION STEP 1
2 50702KTE910 BRACKET COMP., L. PILLION STEP 1
3 50710KTE910 RUBBER, PILLION STEP 2
4 50712405000 WASHER, PILLION STEP 2
5 50715405000 BAR, PILLION STEP 2
6 50730K14900 HOLDER SET, HELMET 1
7 51103KTE650 GUARD A, SARI 1
8 51104K14900 GUARD B, SARI 1
9 90107449000 BOLT, HELMET HOLDER SETTING 1
10 9390335220 SCREW, TAPPING, 5X12 2
11 9410106000 WASHER, PLAIN, 6MM 2
12 9501581000 PIN A, PILLION STEP 2
13 957010801600 BOLT, FLANGE, 8X16 2
14 957010802000 BOLT, FLANGE, 8X20 4
15 957010802007 BOLT, FLANGE, 8X20 2
16 957010803500 BOLT, FLANGE, 8X35 1
17 9405008000 NUT, FLANGE, 8MM 1
18 50610KTED00 BAR COMP., STEP 1
19 50610KTED20 BAR COMP., STEP 1
20 50660KTED00 RUBBER, STEP 2
21 9420116120 PIN, SPLIT, 1.6X12 2
