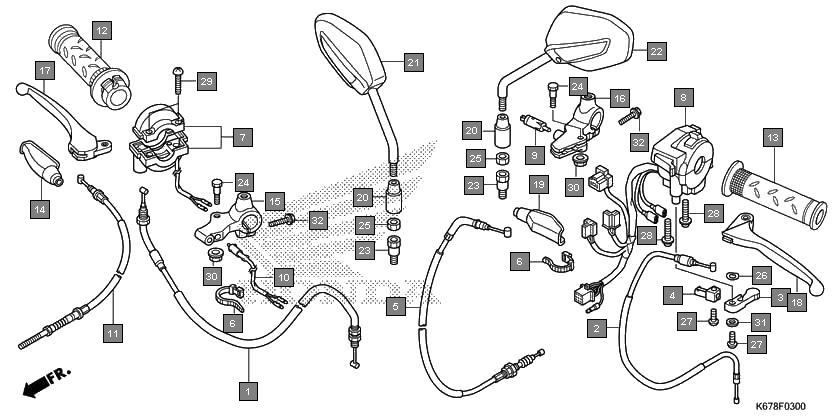

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17910KTE651 | CABLE COMP., THROTTLE | 1 |
| 2 | 17950KTE650 | CABLE COMP., CHOKE | 1 |
| 3 | 17961KTE911 | LEVER, CHOKE | 1 |
| 4 | 17962KTE910 | STOPPER, CABLE | 1 |
| 5 | 22870KTE910 | CABLE COMP., CLUTCH | 1 |
| 6 | 32161KSP920 | BAND B1, WIRE | 2 |
| 7 | 35150KTE601 | SWITCH ASSY., STARTER | 1 |
| 8 | 35330KEJ900 | SWITCH COMP., FR. LEVER | 1 |
| 9 | 35340KTE601 | SWITCH ASSY., FR. STOP | 1 |
| 10 | 53166KSPA70 | GRIP, L. HANDLE | 1 |
| 11 | 53171KCC900 | COVER, R. HANDLE LEVER | 1 |
| 12 | 53171KTEA00 | BRACKET, R. HANDLE LEVER | 1 |
| 13 | 53172KTE930 | BRACKET, L. HANDLE LEVER | 1 |
| 14 | 53175KTEA00 | LEVER COMP., R. HANDLE | 1 |
| 15 | 53178KTEA00 | LEVER COMP., L. HANDLE | 1 |
| 16 | 53179KTC900 | COVER, L. HANDLE LEVER | 1 |
| 17 | 88114198D10 | CAP, LOCK NUT | 2 |
| 18 | 90201MW3620 | NUT, HEX., 10MM (LEFT HAND THREAD) | 2 |
| 19 | 90442147000 | WASHER, WAVE | 1 |
| 20 | 93500050100A | SCREW, PAN, 5X10 | 2 |
| 21 | 93500050200G | SCREW, PAN, 5X20 | 2 |
| 22 | 93500050220G | SCREW, PAN, 5X22 | 2 |
| 23 | 9410305000 | WASHER, PLAIN, 5MM | 1 |
| 24 | 90114428870 | BOLT, HANDLE LEVER PIVOT | 1 |
| 25 | 9405006000 | NUT, FLANGE, 6MM | 1 |
| 26 | 960010602507 | BOLT, FLANGE, 6X25 | 1 |
| 27 | 35200K67931 | SWITCH ASSY., WINKER | 1 |
| 28 | 45450KTED02 | CABLE COMP., FR. BRAKE | 1 |
| 29 | 53140K38940 | GRIP COMP., THROTTLE | 1 |
| 30 | 88210K38941ZA | MIRROR COMP., R.*NH1* BLACK | 1 |
| 31 | 88220K38941ZA | MIRROR COMP., L. *NH1*BLACK | 1 |
| 32 | 90103K38940 | BOLT, ADAPTER, 10MM | 2 |
