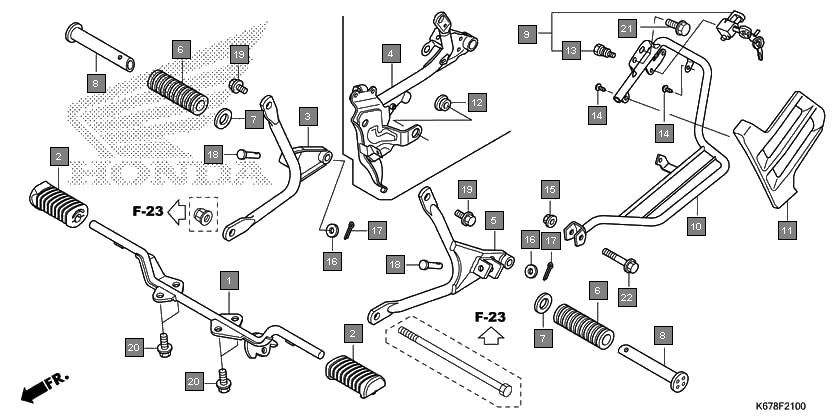

Motorcycles CB Shine SP CBF125MH Frame Step
Ref.No. Part No. Description Oty
1 50660KTE650 RUBBER, STEP 2
2 50701K67900 BRACKET COMP., R. PILLION STEP 1
3 50701K67920 BRACKET COMP., R. PILLION STEP 1
4 50702KTE910 BRACKET COMP., L. PILLION STEP 1
5 50710KTE910 RUBBER, PILLION STEP 2
6 50712405000 WASHER, PILLION STEP 2
7 50715405000 BAR, PILLION STEP 2
8 50730K14900 HOLDER SET, HELMET 1
9 51103KTE650 GUARD A, SARI 1
10 51104K14900 GUARD B, SARI 1
11 83551376000 GROMMET, SIDE COVER 1
12 90107449000 BOLT, HELMET HOLDER SETTING 1
13 9390335220 SCREW, TAPPING, 5X12 2
14 9405008000 NUT, FLANGE, 8MM 1
15 9410106000 WASHER, PLAIN, 6MM 2
16 957010801600 BOLT, FLANGE, 8X16 2
17 957010802000 BOLT, FLANGE, 8X20 4
18 957010802007 BOLT, FLANGE, 8X20 2
19 957010803500 BOLT, FLANGE, 8X35 1
20 50610K67900 BAR COMP., STEP 1
21 50610K67920 BAR COMP., STEP 1
22 9420116120 PIN, SPLIT, 1.6X12 2
23 90131KWPF00 PIN, PILLION STEP 2
