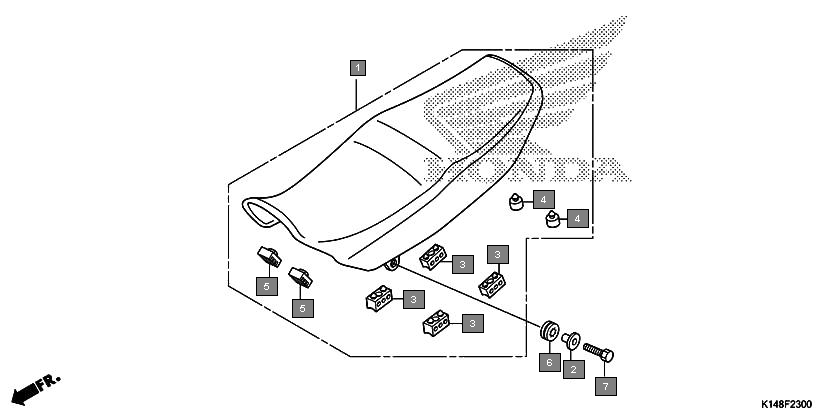

Motorcycles Dream Yuga CB110BK Frame Seat
Ref.No. Part No. Description Oty
1 77201KYY900 COLLAR, SEAT MOUNTING 2
2 77204KYA600 RUBBER A, SEAT SETTING 4
3 77206KPPT00 RUBBER, SEAT CUSHION 2
4 77207KYA600 RUBBER B, SEAT SETTING 2
5 77218KYY900 RUBBER, SEAT STAY 2
6 92101080280A BOLT, HEX., 8X28 2
7 77200K14C02ZA SEAT ASSY., DOUBLE *TYPE1* 1
8 77200K14C03ZA SEAT ASSY., DOUBLE *TYPE1* 1
