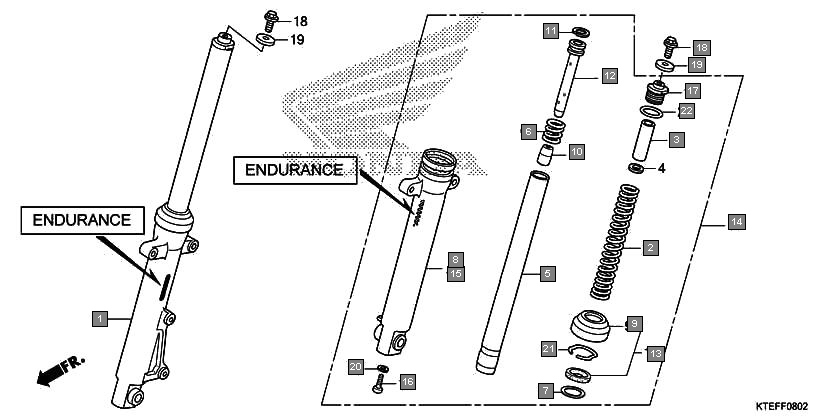

Motorcycles CB Shine CBF125L Frame Front fork(endurance)(disk brake)
Ref.No. Part No. Description Oty
1 51520KTE613 Case Fr. Bottom (L) 1
2 51420KTE673 Case Fr. Bottom (R) 1
3 51425KTE603 Seal Dust 2
4 51400KTEDA2 FORK ASSY., R. FR.(ENDURANCE) 1
5 51401KTE602 SPRING, FR. FORK(ETPL) 2
6 51403KTED81 COLLAR, SPRING(ENDURANCE) 2
7 51410KTE602 PIPE COMP., FR. FORK(ETPL) 2
8 51412K23902 SPRING, REBOUND 2
9 51413K63D11 RING, BACK UP 2
10 51432K23902 PIECE, OIL LOCK 2
11 51437K23902 RING, PISTON 2
12 51440KTE602 PIPE, SEAT(ETPL) 2
13 51500KTEDA2 FORK ASSY., L. FR.(ENDURANCE) 1
14 90116K23902 BOLT, SOCKET, 8MM 2
15 90123K23902 BOLT A, FR. FORK 2
16 90123KRM860 BOLT, FR. FORK 2
17 90521KSP900 WASHER, 10.3MM 2
18 90544K23902 WASHER, SPECIAL, 8MM 2
19 90651K23902 RING, OIL SEAL STOP 2
20 91351K23902 O-RING 2
21 51490KTE603 Seal Set Fr. Fork 2
