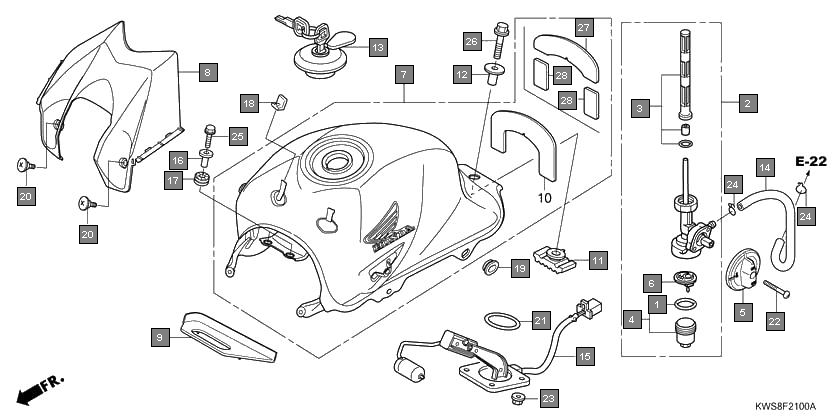

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16173001004 | PACKING, FUEL STRAINER CUP | 1 |
| 2 | 16950KWS901 | COCK ASSY., FUEL | 1 |
| 3 | 16952KWS901 | SCREEN SET, FUEL STRAINER | 1 |
| 4 | 16953GT4305 | CUP SET, FUEL STRAINER | 1 |
| 5 | 16955KWS900 | LEVER, FUEL COCK | 1 |
| 6 | 16959HB3005 | FILTER, CUP | 1 |
| 7 | 17500KWSB00ZB | TANK ASSY., FUEL(WL) *TYPE3* | 1 |
| 8 | 17500KWSB00ZC | TANK ASSY., FUEL(WL) *TYPE2* | 1 |
| 9 | 17500KWSB00ZD | TANK ASSY., FUEL(WL) *TYPE1* | 1 |
| 10 | 17520KWS900ZF | COVER, TANK *NH1* BLACK | 1 |
| 11 | 17520KWS900ZQ | COVER, TANK *NH194MU* HEAVY GRAY METALLIC-U | 1 |
| 12 | 17520KWS900ZS | COVER, TANK *R321* SPORTS RED | 1 |
| 13 | 17521KWS900 | TRAY, FUEL | 1 |
| 14 | 17613KWS900 | RUBBER, FUEL TANK RR. | 1 |
| 15 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 16 | 17620KWS901 | CAP COMP., FUEL FILLER | 1 |
| 17 | 17681KWS900 | TUBE, FUEL | 1 |
| 18 | 37800KWS901 | FUEL UNIT | 1 |
| 19 | 61104422000 | COLLAR, SETTING | 2 |
| 20 | 77208KW7900 | RUBBER B, SEAT MOUNTING | 2 |
| 21 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
| 22 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
| 23 | 90107KW7900 | BOLT, FAIRING SETTING | 2 |
| 24 | 91305443740 | O-RING, 39.5X5 | 1 |
| 25 | 93500040400G | SCREW, PAN, 4X40 | 1 |
| 26 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 27 | 9500202100 | CLIP, TUBE(B10) | 2 |
| 28 | 960010602200 | BOLT, FLANGE, 6X22 | 2 |
| 29 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
| 30 | 957020802800 | BOLT, FLANGE, 8X28 | 1 |
| 31 | 17526KWS600 | FILM, TANK PROTECTOR | 1 |
| 32 | 17527KWS600 | FILM, TANK SIDE PROTECTOR | 2 |
| 33 | 17500KWSB00ZE | TANK ASSY., FUEL(WL)*TYPE4* | 1 |
| 34 | 17500KWSB00ZF | TANK ASSY., FUEL(WL)*TYPE3* | 1 |
| 35 | 17500KWSB00ZG | TANK ASSY., FUEL(WL)*TYPE2* | 1 |
| 36 | 17500KWSB00ZH | TANK ASSY., FUEL(WL)*TYPE1* | 1 |
