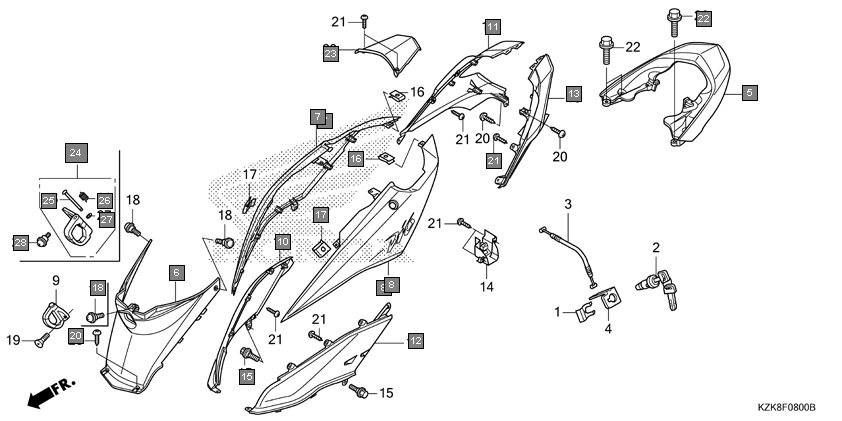

Scooters Dio SCV110FD Frame Body cover
Ref.No. Part No. Description Oty
1 75582KCW870 SPRING, LOCK KEY SETTING 1
2 77239KPL841 KEY, SEAT LOCK 1
3 77240KZK900 CABLE, SEAT LOCK 1
4 77241KZK900 STAY, SEAT LOCK 1
5 77300KZK900ZF GRIP, RR. *Y220P* REARL TRANCE YELLOW 1
6 77300KZK900ZA GRIP, RR. *R321* SPORTS RED 1
7 77300KZK900ZD GRIP, RR. *NHA66P* PEARL SUNBEAM WHITE 1
8 77300KZK900ZC GRIP, RR. *NH303M* MAT AXIS GRAY METALLIC 1
9 80151KZK900ZA COVER, CENTER *NH1* BLACK 1
10 83100KZKD00ZA COVER SET, R. BODY(WL) *TYPE4* 1
11 83100KZKD00ZB COVER SET, R. BODY(WL) *TYPE3* 1
12 83100KZKD00ZC COVER SET, R. BODY(WL) *TYPE2* 1
13 83100KZKD00ZD COVER SET, R. BODY(WL) *TYPE1* 1
14 83200KZKD00ZB COVER SET, L. BODY(WL) *TYPE3* 1
15 83200KZKD00ZC COVER SET, L. BODY(WL) *TYPE2* 1
16 83200KZKD00ZA COVER SET, L. BODY(WL) *TYPE4* 1
17 83200KZKD00ZD COVER SET, L. BODY(WL) *TYPE1* 1
18 83508KPL900 HOOK, LUGGAGE 1
19 83520KZK900ZA COVER, R. BODY SIDE *NH1* BLACK 1
20 83530KZK900ZA COVER, R. RR. SIDE *NH1* BLACK 1
21 83620KZK900ZA COVER, L. BODY SIDE *NH1* BLACK 1
22 83630KZK900ZA COVER, L. RR. SIDE *NH1* BLACK 1
23 83640KZK900 COVER, SEAT LOCK CABLE 1
24 90111KWP900 BOLT, INNER COVER 2
25 90344KTE910 NUT, CLIP, 4MM 2
26 90677KANT00 NUT, CLIP, 5MM 2
27 91509GE2760 SCREW, PAN, 5X11.5 3
28 93600050120G SCREW, FLAT, 5X12 2
29 9390325380 SCREW, TAPPING, 5X16 4
30 9390334480 SCREW, TAPPING, 4X16 16
31 934060803000 BOLT, WASHER, 8X30 4
32 83510KZK900ZA COVER, RR. CENTER *NH105* MAT BLACK(#15-#20) 1
