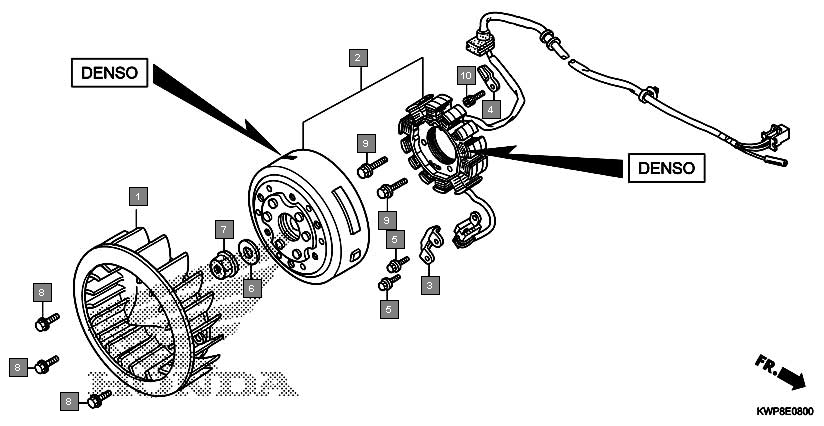

Scooters Activa SCV110F Engine Generator(denso)
Ref.No. Part No. Description Oty
1 32907GGC900 CLIP, A.C. GENERATOR CORD 1
2 32976107010 CLAMPER, WIRE HARNESS 1
3 90002KGH900 BOLT, FLANGE, 5X14 2
4 90410GCC000 WASHER, 10MM 1
5 9405010000 NUT, FLANGE, 10MM 1
6 957010601600 BOLT, FLANGE, 6X16 3
7 957020601600 BOLT, FLANGE, 6X16 3
8 960010602200 BOLT, FLANGE, 6X22 2
9 966000601600 BOLT, SOCKET, 6X16 1
10 19510KWPD00 FAN COMP., COOLING 1
11 31100KWPD01 GENERATOR ASSY., A.C.(DENSO) 1
