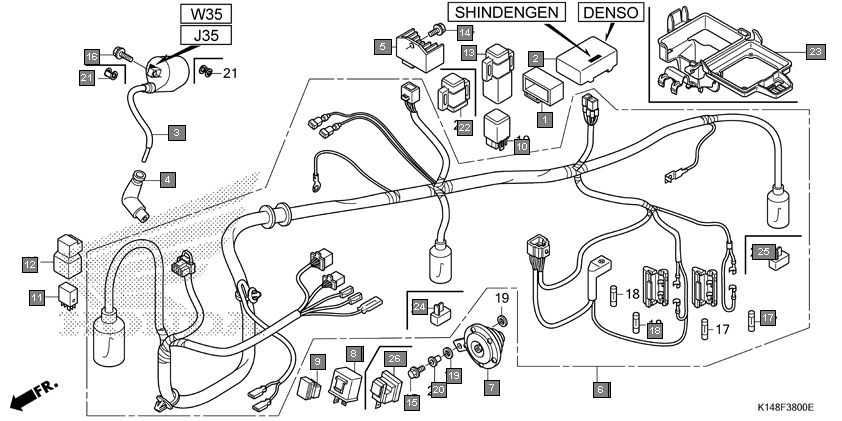

Motorcycles Dream Yuga CB110AMH Frame Wire harness
Ref.No. Part No. Description Oty
1 32100K55600 HARNESS, WIRE 1
2 38301K14962 RELAY COMP., WINKER (STAR ENGINEERS) 1
3 30410K14931 SPARK UNIT COMP.(SHINDENGEN) 1
4 30410K23901 SPARK UNIT COMP.(DENSO) 2
5 30500K14901 COIL ASSY., IGNITION(WINGS) (W35) 1
6 30500K14931 COIL ASSY., IGNITION(JAGDISH)(J35) 1
7 30700K14901 CAP ASSY., NOISE SUPPRESSOR (KUNAL) 1
8 30410K14A31 SPARK UNIT COMP.(SHINDENGEN) 1
9 31600K14A31 RECTIFIER COMP., REGULATE (SINDENGEN) 1
10 32100K14A30 HARNESS, WIRE(MOTHERSON SUMI). 1
11 38110K63D31 HORN COMP. 1
12 38117KYJT00 COLLAR, HORN SETTING 1
13 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
14 38301K63D21 RELAY COMP., WINKER (STAR ENGINEERS) 1
15 31600K14961 RECTIFIER COMP., REGULATE(STAR ENGINEERS) 1
16 31600K14962 RECTIFIER COMP., REGULATE(SINDENGEN) 1
17 32100K14960 HARNESS, WIRE(MINDA SAI) 1
18 32100K14A00 HARNESS, WIRE(MOTHERSON SUMI) 1
19 38110K14901 HORN COMP. 1
20 38306K14931 SUSPENSION, WINKER RELAY (STAR ENGINEERS) 1
21 38501KWH971 RELAY COMP., STARTER(JAGDISH) 1
22 38502KWA931 RELAY COMP., POWER (MICRO ISO 5P)(MULTILINK) 1
23 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
24 38506KSP910 SUSPENSION, POWER RELAY 1
25 957010601200 BOLT, FLANGE, 6X12 1
26 957010602000 BOLT, FLANGE, 6X20 1
27 92101060204J BOLT, HEX., 6X20 2
28 9820011000 FUSE A(10A) 2
29 9820011500 FUSE(15A) 2
30 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
31 38117KFE701 COLLAR, HORN SETTING 1
32 30520GFM900 SPACER, IGNITION COIL 2
33 38506K23910 SUSPENSION, STARTER RELAY 1
34 50370K14960 HOLDER, C.D.I. UNIT 1
35 32100K55900 HARNESS, WIRE 1
